Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi

Özellikleri

Teknik Özellikler

ağırlık: 750 kg

Kapasite: 27-30 adet/dak

Boyutlar: 1950x800x1550mm

Motor gücü: %100 Test Edildi

Servo motor gücü: 1 kW

Askı boyutu aralığı: 13" ~ 15" ve 16" ~ 18"

Tel çapı aralığı: φ1,8 ~ 2,8 mm

Otomatik algılama: Acil durdurma sensörü

çekirdek bileşenler: Motor

Makine tipi: Otomatik tel askı makinası

Modeli QK-2(S): 700KGS, 1,95 × 0,8 × 1,55M

Modeli QK-3: 720KGS, 2,0 × 0,8 × 1,75M

Modeli QK-4: 1100KGS, 2,5 × 1,2 × 1,68M

Modeli QK-2(L): 700KGS, 1,95×0,8×1,55M

Modeli QK-3(L): 720KGS, 2,0×0,8×1,75M

Vurgulamak:

Automatic Wire Hanger Machine

27-30pcs/min Hanger Making Machine

Galvanised Steel Wire Hanger Machine

Temel bilgiler

Menşe yeri: Jiangsu, Çin

Marka adı: DURA

Ödeme & teslimat koşulları

Fotoğraf Galerisi

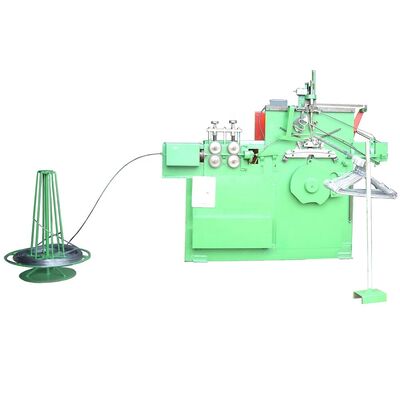

Automatic Galvanised Steel Wire Hanger Machine with 27-30pcs/min Capacity for Laundry Hanger Production

Ürün Açıklaması

Automatic Laundry Galvanised Steel Wire Hanger Making Machine

Automatic Wire Hanger Making Machine

Key Features

Automatic hanger fabrication with high production capacity
Automatic detecting sensor for emergency stop functionality
Easy operation and simple maintenance requirements
Durable dies and lower operational costs

Machine Specifications

Model	QK-2(S)	QK-3	QK-4
Designed Capacity	27-30 pcs/min		20 pcs/min
Hanger Size Range	13"-15" & 16"-18"		14"-19"
Wire Diameter Range	φ1.8-2.8mm		φ1.6-4.0mm
Motor Power	1.5KW		2.2KW
Servo Motor Power	-	1KW	2KW
Weight	700 KGS	720 KGS	1100 KGS
Overall Dimensions	1.95×0.8×1.55M	2.0×0.8×1.75M	2.5×1.2×1.68M

Model	QK-2(L)	QK-3(L)
Designed Capacity	25-29 pcs/min
Hanger Size Range	20"
Wire Diameter Range	φ1.8-3.0mm
Motor Power	1.5KW	1.5KW
Servo Motor Power	-	1KW
Weight	700 KGS	720 KGS
Overall Dimensions	1.95×0.8×1.55M	2.0×0.8×1.75M

Customized hanger shape & size available! Provide your hanger photo, drawing, or sample, and we will adjust the automatic hanger making machine to produce the exact hanger size and shape you require.
